Luyi Custom Semi Trailers & Fabricante de camiones desde 2019.

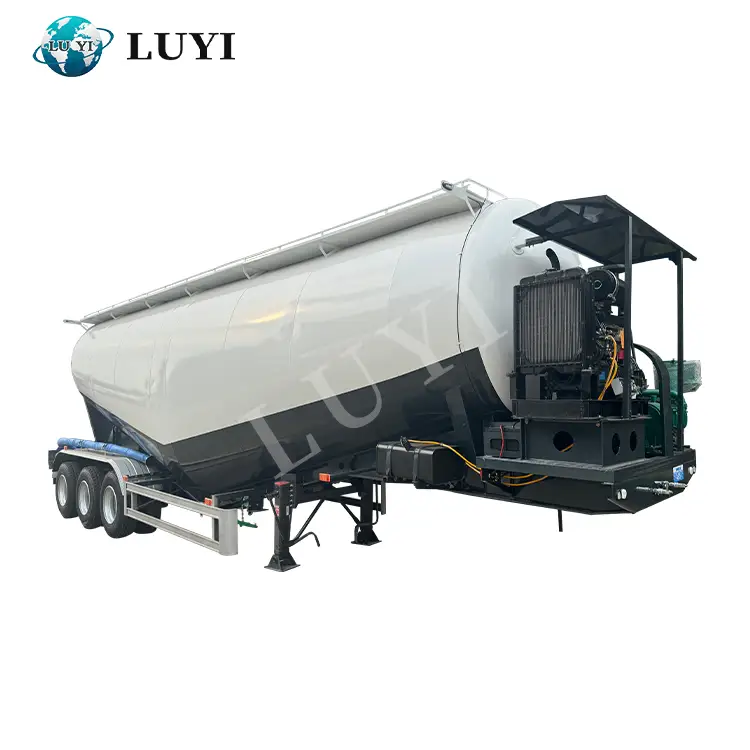

3 axle bulk cement tank semi trailer

Size： 50metro3

Place of Origin： Shandong province China

Minimum Order Quantity： 1 unit

Color： Personalizado

Material Science： Carbon steel, high strength steel

Packing： Nude package or according to customer’s requirement

Delivery Time： 20 días

Model： LY9400GFL

Transaction Mode： T/T, Cash,Western Union, trade assurance , L/C

consulta

Escribe una reseña

Product details

This one is a 50 cubic powder tank semi-trailer . Size 11.3*2.55*4m, it is equipped with 4102 diesel engine, 12 cubic air compressor .The powder tank trailer especially designed for carrying different bulk items like cement,flour, powder, soda, ash, alumina. We can offer a wide range of powder tank trailers with different specification

For more questions, please feelfree to contact with us.

3 Axle Grain Dump Trailer – Superior Solution for Agricultural and Bulk Cargo Transportation

The 3-axis bulk cement tank semi-trailer is an efficient transport tool designed for the transportation of bulk cement and powder materials. Its main body is a large cylindrical tank design with a capacity of up to 50 cubic meters, which can meet the needs of large-scale cement transportation. The tank is made of high-quality steel with smooth surface and strong and durable structure to ensure the safety and stability of materials during transportation.

Product characteristics

Pneumatic semi-trailer is mainly composed of tank, power system (diesel engine, air compressor), air circuit system, braking system. At present, the general large manufacturers of tank fluidised bed design science, reasonable layout, can effectively shorten the unloading time, unloading speed up to 1.4T/min.

Improve the tank volume utilisation and reduce the residual ash rate to 0.2%.

Large capacity design

The tank capacity of 50 cubic meters can efficiently transport large quantities of bulk cement or powdery materials, significantly improving transportation efficiency.

Materiales de alta calidad

The tank is made of high-quality steel, which has the characteristics of corrosion resistance and high compressive strength to ensure long-term stable performance.

Convenient loading and unloading

Equipped with advanced unloading system, it can discharge materials quickly and evenly, reduce operation time and improve work efficiency.

Safe and reliable

Excellent sealing performance of the tank, prevent the material from leaking or getting damp during transportation, and ensure that the quality of the material is not affected.

3-axis design

The 3-axis structure provides stronger carrying capacity and driving stability, suitable for long or short distance transportation.

Product detail description

40 cubic aluminum alloy powder tanksemi-trailer,3-axle bpw axle,the first axle air suspension with lifting, the rear two axles mechanical suspension, all-aluminum body with light weight and large transportation capacity, providing customers with the best transportation solutions

Power System

4102 diesel engine, 12 cubic air compressor . Optional electrical power system

JOST brand lading gear

Durable landing gear designed to work under both high and low temperature

Pressure gauge

Through the pressure gauge, we can see the pressure inside the tank to better complete the unloading.

Anti-backflow valve

Air connection pipe, valve to prevent gas backflow

Safety valve

When the pressure is too high, the safety valve will automatically exhaust.

Tank body

LUYI adopts the advanced machine, that ensure the high quality of welding seams, long service life and good appearance in tank body.

light

Located around the bulk cement tanker, it serves as a warning indicator.

More loading, fast unloading

At a vertical height of 15m, a horizontal distance of 5m, and a rated working pressure of 0.2MPa, the average discharge speed is greater than 1.3t/min or 1.1m³/min.

Application scenario

Service and guarantee

The 3-axis bulk cement tank semi-trailer is widely used in cement plants, construction sites, logistics transportation and other fields, and is an ideal choice for bulk cement transportation. Its efficient and safe characteristics can meet the needs of large-scale material transportation, help enterprises reduce transportation costs and improve operational efficiency.

We provide high quality materials and considerate service to ensure that customers have no worries in the process of purchase and use. Support customized services, can adjust tank capacity, discharge mode and other configurations according to customer needs to meet individual needs.

With its large capacity, high quality and convenient handling, the 3-axis bulk cement tank semi-trailer has become a reliable choice in the field of bulk cement transportation. Whether it is long distance or short distance distribution, this semi-trailer can efficiently complete the task, providing you with a professional and safe solution for the transportation of materials.

Stable and secure, multifunctional

Steering Function

The rear two axles have follow-upsteering function, whichfacilitates turning.

Kilimeter Meter

The second axle is equipped withan odometer for easy mileagechecking

Lift Fuinction

The front one axle has lift function, when unloaded, this axle can be lifted seperately to reduce tire wear.

Tough Cargo Platform

Uniquely designed andmanufactured cargo platformprovides low center of gravity forsafe and steady transportation.
